Step aboard the new Leopard 42 and experience a new era of sailing. Joining the Leopard 46 and Leopard 50, the Leopard 42 leaves no detail overlooked in size or possibility. Sailing performance and livability exist harmoniously under one sleek profile. The Leopard 42’s signature coachroof lounge provides ample space not found in other vessels, offering a place to convene and plot tomorrow’s next adventure
Built by Robertson & Caine and designed by naval architects Simonis Voogd, the Leopard 42 utilizes superior finishes and materials, creating a one-of-a-kind vessel that balances comfort, performance and ease of handling. A thoughtful design process ensures every feature and function has been anticipated, with minimal customization needed. Those onboard can move about effortlessly knowing their needs are fully addressed in every aspect of the Leopard 42.
The exterior’s striking design features continuous hull side windows, a continuous hardtop, and Leopard Catamaran’s signature upper-lounge area. Like the Leopard 50, the Leopard 42’s subtle elegance is accented by modern design elements and classic finishes without losing the rugged spirit and sportive quality for which Leopard is known.
A handsome interior reveals generous natural light from optimized window placements including an additional window in the aft starboard corner facing the helm seat and a skylight in the saloon. Preparing meals no longer feels like an afterthought with a forward-facing, L-shaped galley that invites everyone to participate in the process. The Leopard 42 reimagines comfort through its optimal use of space and attention to detail. All bunks are now island berths that allow access from both sides. Available in three cabin/three heads and four cabin/four heads, all cabins include private ensuite heads. All heads also include their own designated shower area, a feature not currently found on catamarans in this size range.
Equal parts luxury and performance, the Leopard 42’s capabilities far exceed its size. Together with new technology and building techniques, the Leopard 42 brings exhilaration and freedom to sailing in a way no other sailboat can. Always reaching new destinations, the Leopard 42 is ready for your next adventure.
Broker's Notes: This Leopard is available for immediate sale and cruising. Located at Dania Beach Leopard HQ.
Length overall…………………………………………………………………………………41'7" / 12.67m
Length waterline……………………………………………………………………………..40'10" / 12.44m
Beam max……………………………………………………………………………………....23'1" / 7.04m
Draft (half load)……………………………………………………………………………….....4'7" / 1.40m
Bridgedeck Clearance (half load)………………………………………………………......….2'6" / 0.75m
Mast Height (half load)……………………………………………………………….….....67'10" / 20.68m
Saloon Living Area…..................................................................................................162sqft / 15sqm
Displacement (Light ship)………………………………………………………...... 30,183lbs / 13,691kg
Load carrying capacity………………………………………………………….....…..11,156lbs / 5,015kg
Main sail area (standard)………………………………………………………….....…717sqft / 66.6sqm
Genoa Area…………………………………………………………………………..…..501sqft / 46.5sqm
Total upwind area (standard)……………………………………………….......…..1,217sqft / 113.1sqm
Code 0 area……………………………………………………………………….……..676sqft / 62.8 sqm
Code D area………………………………………………………………………….…1022sqft / 94.9sqm
Fresh water capacity……………………………………………………………………..……174gal / 660l
Fuel capacity……………………………………………………………………………………158gal / 600l
Holding tank capacity…………………………………………..........32gal /120l (3 cabins) or 44gal / 16
MAIN SPECIFICATIONS
SALOON
Laminate finish with solid wood trims
Wear resistant simulated wood fooring
Saloon table - convertible to double bunk c/w mattress
LED overhead lighting
Concealed overhead rope lighting
Overhead window with blind
Ventilation through forward facing portlights
Stowage space under settee cushions
Forward doorway access to foredeck
Access to aft cockpit through sliding door/window
2 x Loose Ottoman stools to be used as:
Chart table seat
Settee seating

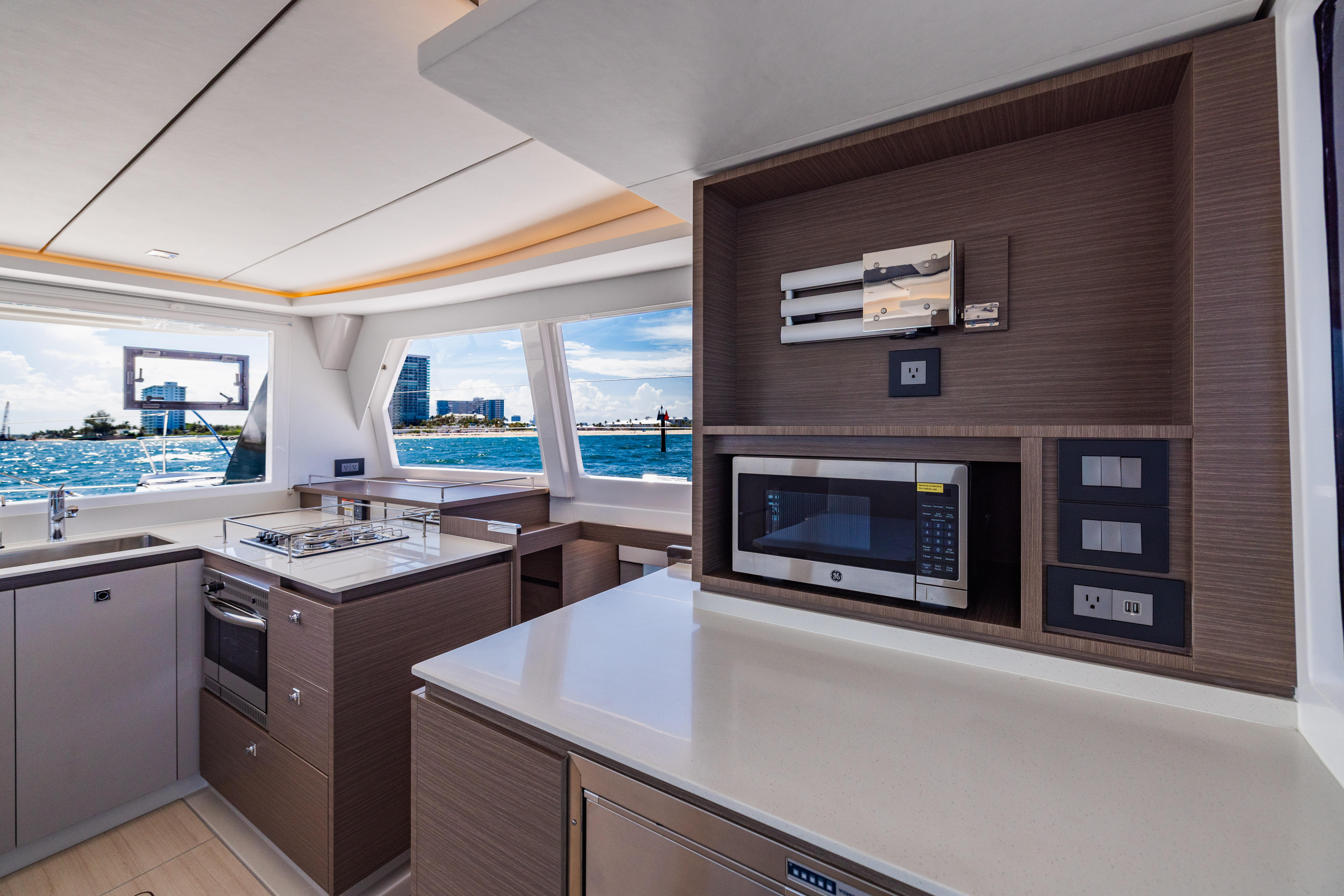

GALLEY
Solid surface acrylic worktops
Single lever mixer faucet with pull-out sprayer
Single bowl s/s sink
Dish and cutlery drying recess with drainage
Cover for drying recess
Vitrifrigo 2-drawer fridge/freezer 56USgal / 212Ltr 12v
ENO 3-burner gas hob
ENO gas oven
Gas solenoid shut-off valve with control at switch panel & warning light at cooker
Gas cylinder regulator in dedicated cockpit LPG locker
Separate garbage bin locker
Stowage space in shelf lockers
Stowage space under floorboards
Pot drawer under oven
3 x Drawers alongside oven
Outboard galley shelf
Microwave locker
OWNER CABIN (3 CABIN VERSION)
Laminate finish with solid wood trims
Wear resistant laminate flooring
Double berth (1.57m x 2.04m or 5'2" x 6'8")
1 x Full height hanging locker
1 x Full height shelf locker
Vanity table/desk with storage locker under lid
Fold up vanity mirror
Drawer unit with 3 x drawers
2 x Stowage drawers under bunk
Sliding entrance door with lock
LED overhead lighting
Concealed overhead rope lighting
Concealed under bunk rope lighting
2 x LED reading lamps over bunk
NAVIGATION CONSOLE
Chart table with storage locker under hinged lid
LED overhead lighting
Backrest s/s railing

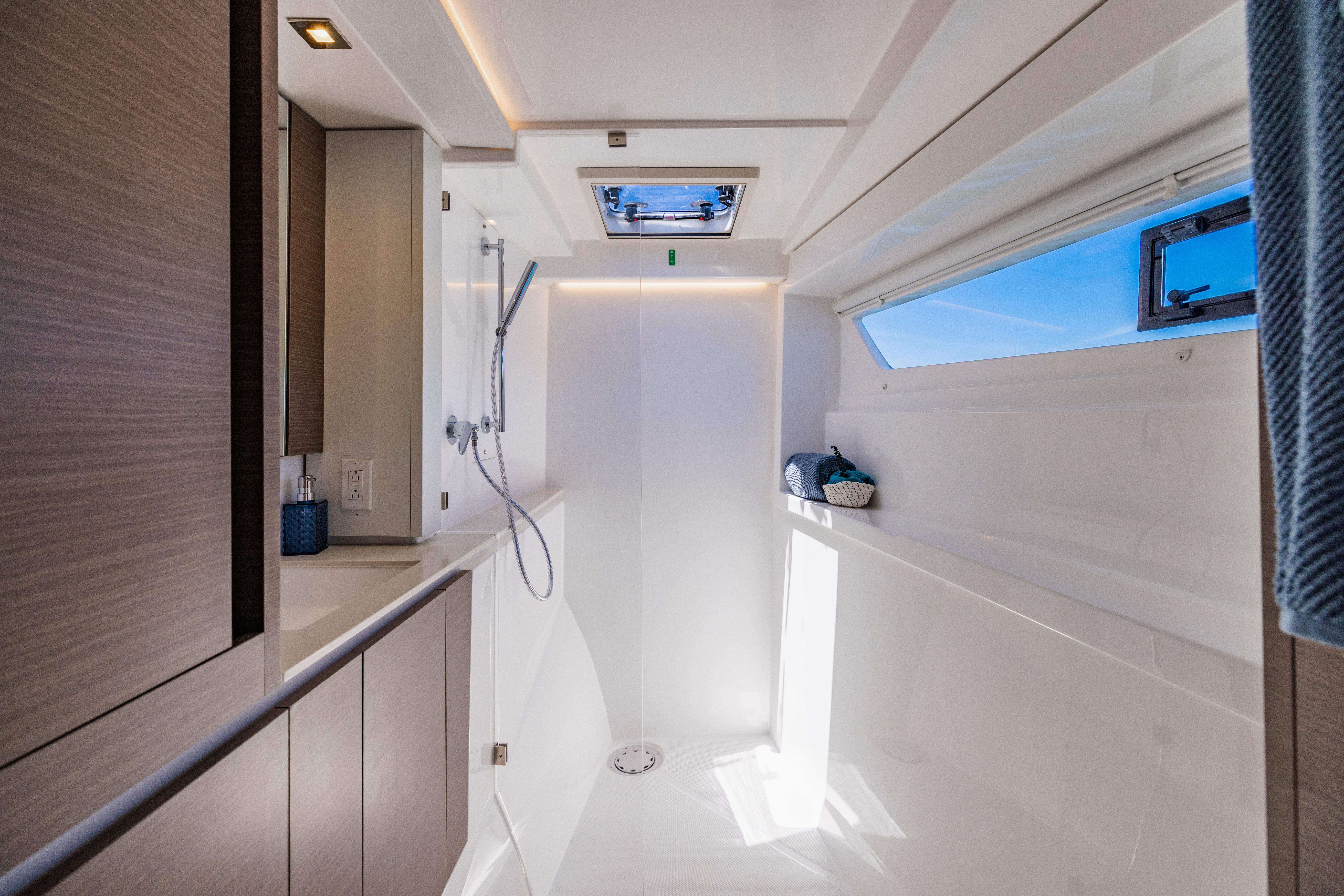

HEADS COMPARTMENTS x 3 (3 CABIN VERSION)
Large washbasin with basin mixer and solid surface acrylic top
Under-basin locker with toilet roll holder
Separate shower compartment with divider c/w lever mixer and adjustable drainage system
Shower sump with automatic drainage system
Large bowl manual toilet
Double towel rail, hook and ring
Vanity Locker with mirror
Dedicated trashcan locker
Large linen locker (can house optional washing machine)
Sliding heads door
Overhead roller blind for privacy
LED Overhead lighting
DECK FITTINGS
Guardwires with stanchions, bases, port & starboard side gates
Guardwires across bow and stern
1600w vertical windlass 10mm gypsy and capstan c/w hand-held remote
Anchor bow roller fitting
Anchor chain stopper
Liferaft locker with convertible fore/aft seat bolster
Sliding companionway door/window
Hardtop over cockpit complete with LED lighting
Hardtop over helm with supports and LED light
Forward window brow complete with LED lighting
Side window brows
Folding swimming ladder c/w teak steps
Emergency ladder mounted on port transom
Cockpit table
Bridle mainsheet system (3:1 purchase)
Trampoline
Helmseat with upholstered backrest
Acrylic smoke grey tinted windows
Hardtop supports
Hatches:
Size 10 Flush Hatch: 4-Cabin Layout has 4x over heads.
Size 10 Flush Hatch: 3-Cabin Layout has 2x over port heads, 2x over study.
Size 44 Flush Hatch: 4-Cabin Layout has 4x over cabins and 2x over forepeaks.
Size 44 Flush Hatch: 3-Cabin Layout has 3x over cabins, 1x over owner's heads and 2x over forepeaks.
Portlights:
Size 5 Portlights: Both Layouts has 2x in windscreen
Size 1 Portlight: 4-cabin Layout has 10x in hull side and transom
Size 1 Portlight: 3-cabin Layout has 9x in hull side and transom
1 x Anchor chain bin
1 x Anchor/windlass locker
2 x Foredeck locker
Forward access to foredeck c/w watertight saloon access door
2 x Pulpits with seat
2 x Pushpits
2 x Coachroof handrails
1 x Coachroof Steps handrail
2 x Hardtop grab handles
2 x Transom grab handles
9 x 310mm mooring cleats
2 x Winch handles
2 x Primary winches - (black anodised alloy)
1 x Main sheet winch (black anodised alloy)
2 x genoa cars with pin stop
2 x genoa tracks
2 x Halyard clutch at helm (main & gennaker)
2 x Genoa sheet clutch at helm
2 x Mainsheet clutch at helm
2 x Reef clutch at helm
1 x Furler clutch at helm
1 x Genoa Halyard Clutch and cleat on mast
Drinks holders
2 on forward Coamings
2 at helm
Rope bag at helm (comes with winch handle pocket sown in)
COACHROOF LOUNGE
L-shaped GRP settee (optional seat cushions, backrest and table)
ENGINE & CONTROLS
Double lever throttle / gearshift control
Sound deadening panels in engine room
2 x Engine room ventilation fans and ducting
2 x Yanmar 45hp diesel engines with sail drives
2 x Propellers - fixed blade
2 x Fuel deck fillers
2 x Fuel filter / water separators
2 x Fuel tanks 160USgal / 600Ltr total capacity
2 x Exhaust skin fittings (s/s)
2 x Exhaust water locks
2 x Cooling water inlet strainers
2 x Exhaust cooling water temperature sensors with
audible alarms at helm
ELECTRICAL INSTALLATION
Digital monitoring with 7" Multi-function Display
LED Courtesy lights at stairways
Bi-colour & stern navlights
12v DC switch panel
12v Outlet plug at helm station
USB Outlet at helm station
1 x Double USB socket at saloon cave locker
2 x Double USB socket at Nav station
1 x Double USB socket in each cabin
1 x Wireless mobile phone charger at nav desk
2 x House batteries - 210Ah deep cycle lead acid type
2 x Engine starter batteries - 100Ah lead acid type
1 x House battery isolator switch
2 x Engine starter battery isolator switches
2 x Alternators, standard with engines
1 x Electrical spares kit: fuses, relays, fuse holders
PLUMBING INSTALLATION
Hot and cold pressurized fresh water system consisting of:
2 x Water tanks, 174USgal / 660ltr total capacity
1 x fresh water pressure pump with accumulator tank
2 x Hot water cylinders 12USgal / 46ltr total capacity
Transom shower (cold only)
4 x Automatic shower drain pumps
2 x Holding tanks,
32USgal / 120ltr total capacity (3 cabin)
or 40USgal / 150ltr total capacity (4 cabin)
2 x Electric bilge pumps (keel sump) with float switches and alarm at switch panel
2 x Manual bilge pumps (keel sump)
2 x High bilge float switches with alarm at switch panel
2 x Electric bilge pumps (engine room) with float switch and warning light at switch panel
Freshwater connection
Water purifying filter system (Purifying water tap located at galley)
NAVIGATION EQUIPMENT
Compass at helm position
RUDDER & STEERING SYSTEM
Balanced spade rudders
Rudder stock in 17-4 PH stainless steel
Self aligning bearings
Chain-and-wire steering system c/w bulkhead steering unit and brake
Destroyer-type steering wheel
Emergency tiller (s/s)
RUNNING RIGGING
2 x Main sheets (3:1 purchase)
2 x Genoa sheets
3 x Halyards (main, genoa & spare)
2 x Single line reefs lead aft
Main boom topping lift
MAST, RIGGING, & SAILS
Natural anodized mast
Natural anodized crossbeam c/w mooring cleats
Wind indicator
Genoa furler
Mainsail full battened c/w 2 rows reefs
Furling genoa
2 x Additional spare 12v wires in mast
Additional spare conduit with messenger in mast
GENERAL EQUIPMENT
6 x Fire extinguishers(3C) and 7 x Fire extinguishers(4)
Owner's Operating Manual
CE Certification
NMMA Certification
